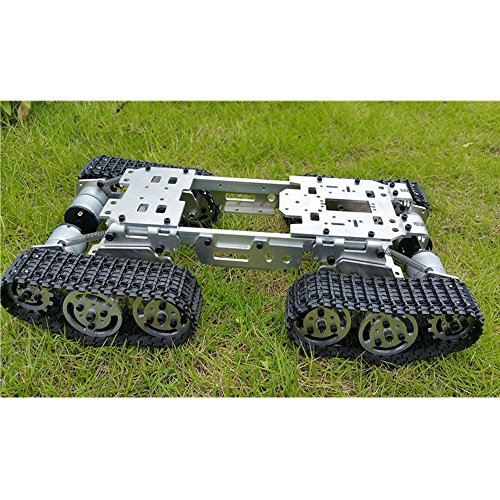

Arduino-Friendly RC Tank Chassis – Wenhsin CNC Design for Creativity
The Wenhsin CNC Damping Balance Tank Chassis is a game-changer for robotics enthusiasts and Arduino hobbyists. With its sleek design, robust build quality, and advanced features, this chassis is designed to cater to the most creative minds. Whether you’re building a tank-style robot or an Arduino-powered RC car, the Wenhsin CNC chassis offers unmatched performance and versatility. Let’s dive into its features, specifications, and advantages.
CNC-Machined Alloy Body for Durability
One of the standout features of this RC tank chassis is its CNC-machined metal body. Crafted from high-quality alloy, the body ensures strength and durability while maintaining a lightweight profile. This meticulous craftsmanship gives the chassis a delicate and beautiful finish that complements its powerful functionality.
Key Advantages of the CNC Alloy Body
- Superior Strength: With a robust metal frame, this chassis can handle rough terrains without compromising stability.
- Lightweight Design: Despite its durable construction, the alloy body is light enough for efficient motor performance.
- Aesthetic Appeal: The smooth CNC finish makes it visually appealing, ideal for enthusiasts who value both form and function.

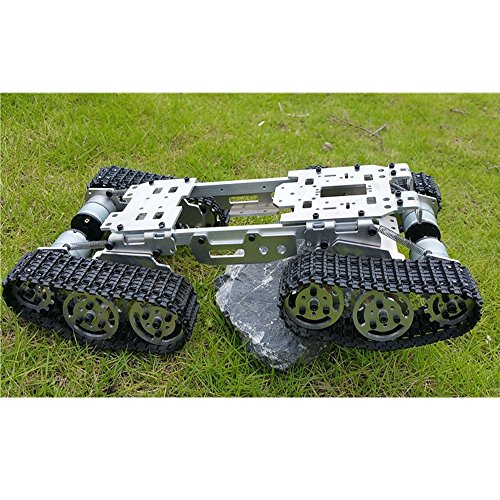

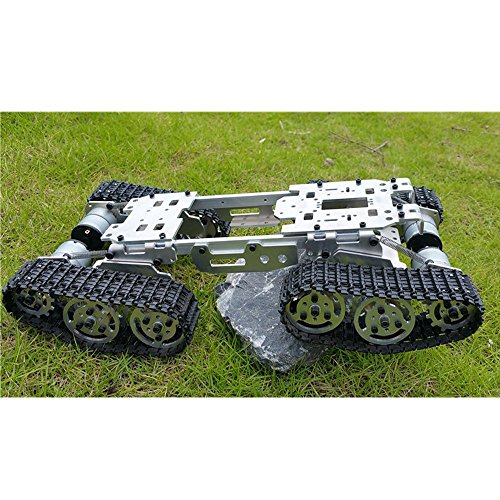

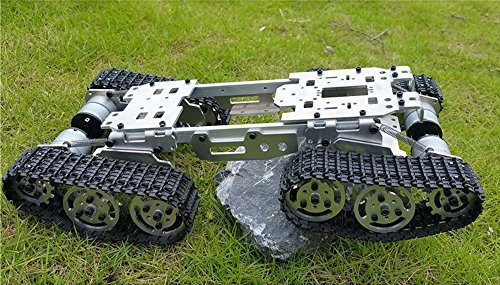

Independent Suspension System for Enhanced Stability

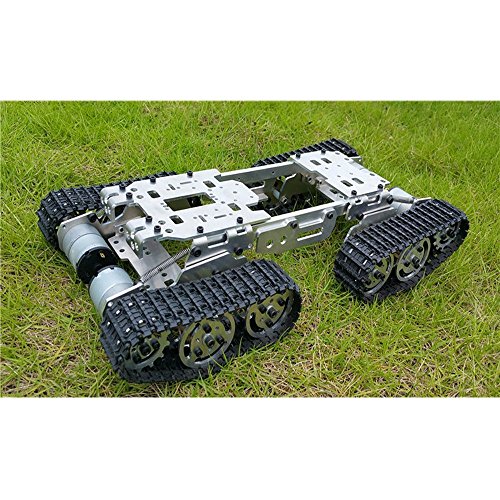

To tackle uneven terrains, the Wenhsin CNC tank chassis is equipped with an independent suspension shock absorption system. This innovative design allows the chassis to maintain smooth operation, even on rough surfaces.
(as of Dec 20, 2019 12:01:57 UTC – Details)
Performance Benefits
- Smooth Running: The suspension system absorbs shocks effectively, enabling seamless movement across bumpy roads or rocky landscapes.
- Increased Control: Whether you’re moving forward, backward, or turning in circles, the suspension system ensures that the chassis remains balanced.
- Versatility: Perfect for outdoor use, this chassis is suitable for a wide range of robotics projects.
Powerful Motors for Optimal Performance
The Wenhsin CNC tank chassis is driven by four high-powered motors that deliver excellent torque and speed. Operating at a voltage range of 6V to 12V, the motors achieve a speed of 350 RPM at 12V.
Motor Highlights
- High Torque Output: These motors provide the necessary power to move the chassis smoothly over different terrains.
- Precise Control: The responsive motors allow for sharp turns and accurate movements, making it ideal for competitive robotics.
- Energy Efficiency: Designed to minimize power consumption while delivering maximum output, ensuring extended operational hours.

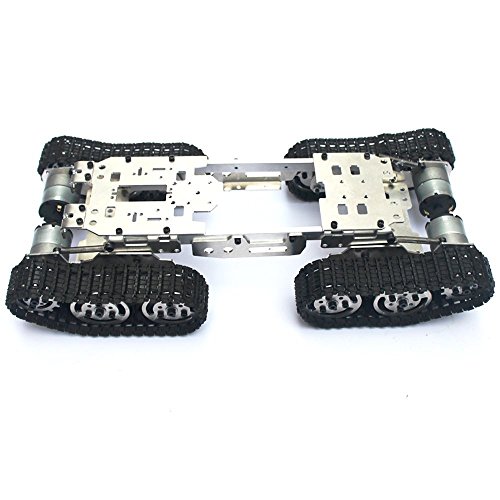

Versatile Chassis Platform for Creative Customizations
The wide flat chassis platform offers ample space for additional components, making it a versatile choice for Arduino and Raspberry Pi projects. Whether you want to add sensors, cameras, or a steering gear, the platform provides endless possibilities for customization.
Customization Options
- Steering Gear Installation: The chassis comes with a pre-drilled steering gear mount, making it easy to integrate a steering system.
- Electronics Integration: The flat design allows for effortless installation of microcontrollers, sensors, and other electronic components.
- Expandable Design: With its robust build and spacious platform, the chassis can support additional modifications like robotic arms or communication modules.

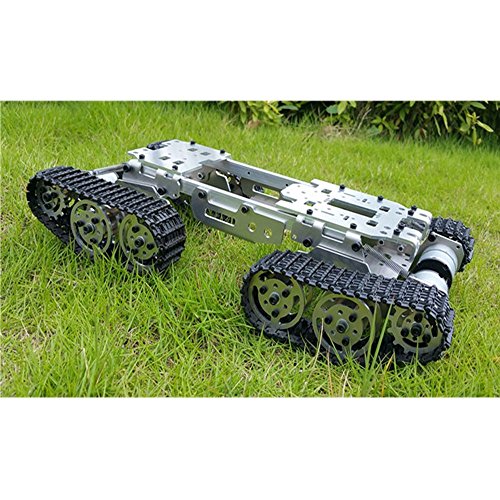

Precision Plastic Tracks for Superior Traction
The tank chassis is equipped with plastic tracks that ensure excellent grip on various surfaces. These tracks are lightweight yet durable, enhancing the overall performance of the robot.
Track Features
- Smooth Operation: The tracks allow for stable and quiet movement, even during high-speed operations.
- High Traction: Designed to provide optimal grip, the tracks work seamlessly on both indoor and outdoor surfaces.
- Low Maintenance: Made from durable plastic, the tracks require minimal upkeep, ensuring longevity.
Assembly Made Easy
This tank chassis comes in parts, allowing users to assemble it themselves. The package includes detailed step-by-step instructions, ensuring a smooth assembly process even for beginners.
Assembly Highlights
- Comprehensive Manual: The professional instructions guide you through the entire assembly process.
- Educational Experience: Assembling the chassis yourself enhances your understanding of its design and functionality.
- Customizable Build: During assembly, you can tailor the chassis to suit your specific project requirements.
Product Specifications
Here’s a detailed breakdown of the Wenhsin CNC tank chassis specifications:
| Feature | Specification |
|---|---|
| General Size | 393mm x 206mm x 84mm (15.5 x 8 x 3.3 in) |
| Operating Voltage | 6V to 12V |
| Motor Speed | 350 RPM at 12V |
| Chassis Material | CNC-machined alloy with plastic tracks |
| Suspension System | Independent shock absorption |

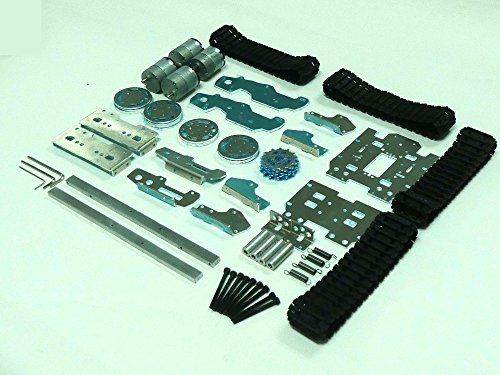

What’s in the Box?
The package includes everything you need to kickstart your project:
- 1 x Tank569 tank chassis kit with CNC alloy body and plastic tracks
- 4 x High-powered motors
- Step-by-step instruction manual
Why Choose the Wenhsin CNC Tank Chassis?
Whether you’re a seasoned robotics expert or an enthusiastic beginner, the Wenhsin CNC tank chassis offers the perfect blend of durability, functionality, and customization. Its advanced features, including a CNC-machined body, independent suspension system, and powerful motors, make it an exceptional choice for building Arduino-powered robots or RC vehicles.
Key Takeaways
- Robust and Reliable: Built with high-quality materials to ensure long-lasting performance.
- Customizable and Versatile: Provides ample space and mounting options for various components.
- Smooth Operation: Designed for seamless movement across different terrains.
