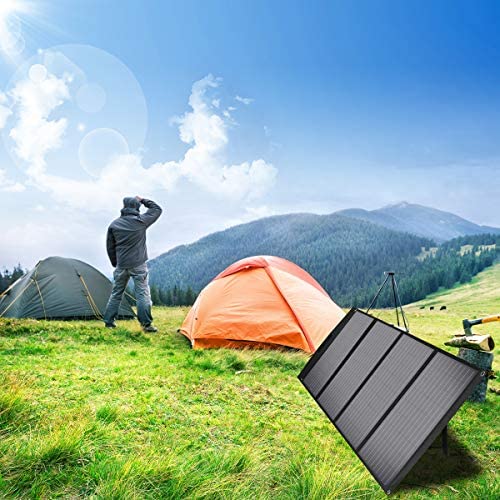

TWELSEAVAN 120W Solar Panel, Power Your Outdoor Life
TWELSEAVAN folding solar panel is designed for travelers, with high durability, portability and compatibility, it’s the perfect companion for all outdoor activities. Compared with other solar chargers, we have added USB QC3.0 port output and USB-C PD port output, which can greatly reduce the charging time with compatible devices, It’s also equipped with 18V DC port output to meet your different usage needs. Compatible with most mobile devices on the market, charging multiple devices at the same time, including portable power station, smartphones, tablets, power banks, digital cameras etc. Ideally suited for the outdoor life and even unexpected power outages.
1. Please check the model, size, voltage and power of your original adapter to ensure compatibility before using.
2. Although polyester canvas provides waterproof protection, we recommend minimizing contact with water to protect the internal electronic components of the product.
3. When the sun is not enough and multiple output ports are used at the same time, the solar panel will automatically distribute the current and give priority to charging some of the devices.
Maximum Power(Pmax): 120W
Solar Cell: High efficiency monocrystalline
Optimum Operating Voltage(Vmp): 18V
Optimum Operating Current(Imp): 6.6A
USB Charging Port: 5V/2.1A(max)
USB QC3.0 Charging Port: 5V⎓3A or 9V⎓2.5A or 12V⎓2A, 24W(max)
USB TYPE-C Charging port: 5V⎓3A or 9V⎓3A or 12V⎓3A or 20V⎓3A, 60W(max)
DC5521 Charging Port: 18V/6.6A(max)

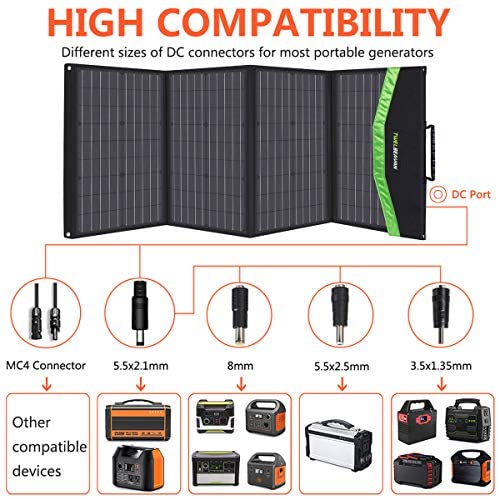

Made for Building Solar Generator
includes 10 different size of DC connectors, compatible with most portable solar generators/power station on the market(but not for Jackery 440)
*This item is solar panel, please put it under direct sunlight, cloudy weather may affect its normal working and power.
5.5 * 2.5mm DC Adapter for Suaoki 400wh portable generator.
8mm DC Adapter for Jackery Explorer 240/160/500, Goal Zero Yeti 150 / 400 Power Station.
5.5 * 2.1mm DC Adapter for Rockpals 250W/PRYMAX 300W portable generator.
3.5 * 1.35mm DC Adapter for Suaoki S270/ENKEEO S155/Paxcess 100W portable generator.
USB port is for smartphones, tablets or other 5V USB devices.
USB QC3.0 and USB TYPE-C port for mobile devices that support fast charging.
MC4 cable for Kyng Power 500W/Rockpals 300W/PAXCESS 330W solar generator and other portable generator compatible with MC4 connector, or connect to solar controller(not included) to charge 12V battery.
Outstanding Features of TWELSEAVAN 120W Solar Panel

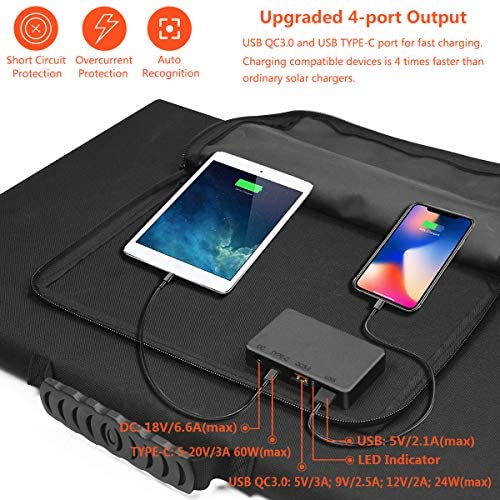

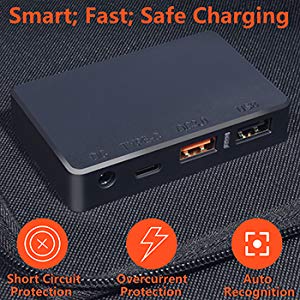

Smart, Safe and Fast Charging
Upgraded 4-port output, added USB QC3.0 (up to 24W) and USB-C PD port (up to 60W), charging compatible devices is 4 times faster than ordinary solar chargers. The smart IC chip built into the USB port intelligently identifies your device and automatically adjust the optimal current according to the connected device to offer the fastest possible charge speed. In addition, it is equipped with short circuit protection and over current protection functions to ensure that your device will not be damaged during charging.

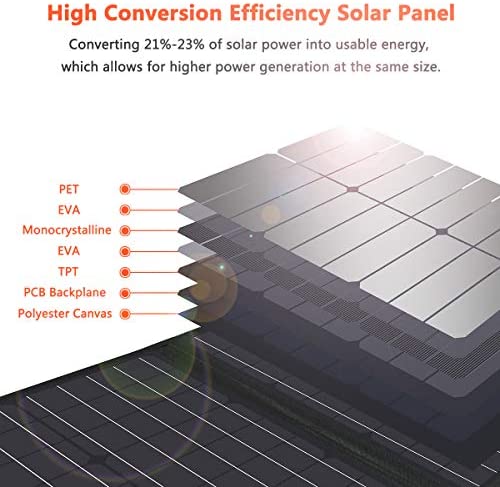

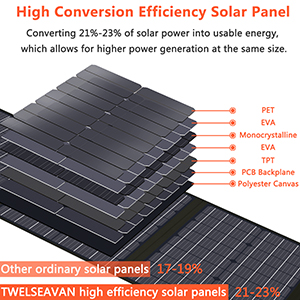

More Efficient Solar Panel
TWELSEAVAN 120W solar panel use highly efficient monocrystalline solar cells, with conversion efficiencies as high as 21-23%, which is much higher than most solar panels on the market, even if the panel size is not larger than ordinary solar panels can also achieve higher power generation.

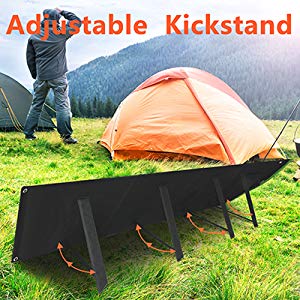

Adjustable kickstand Design
TWELSEAVAN 120W solar panel is equipped with an adjustable kickstand, which enables it to capture sunlight more efficiently and improve work efficiency, capturing 25% -30% more sunlight than lying flat.
More Durable Solar Panel
The back of the solar panel is made of durable polyester canvas, and the surface is made of industrial-strength PET, which can resist the harsh environment encountered in outdoor activities. Perfect for travel, hiking, camping or other outdoor activities.

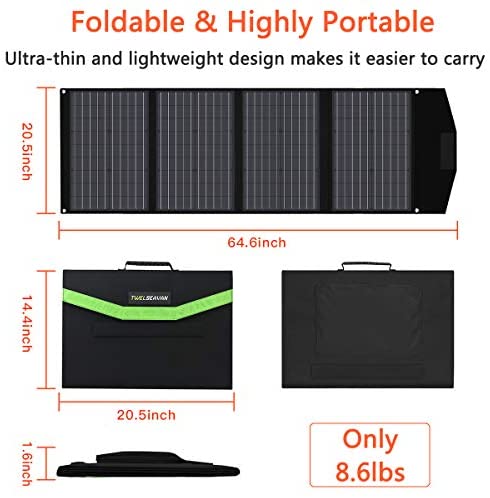

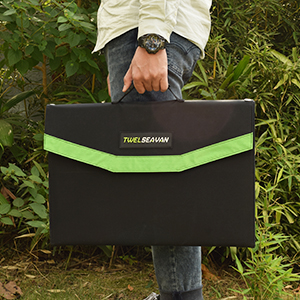

Versatile Application Anywhere
Foldable portable design, folding size is 20.5*14.4*1.6 inch, weighs only 8.6 lbs, a rubber handle for convenient to carry it wherever you go. 4 metal mounting holes allow it to be easily mounted on RVs, tents or other surfaces. It’s the perfect companion for outdoor life.

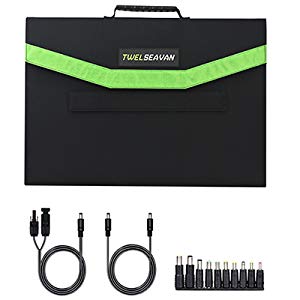

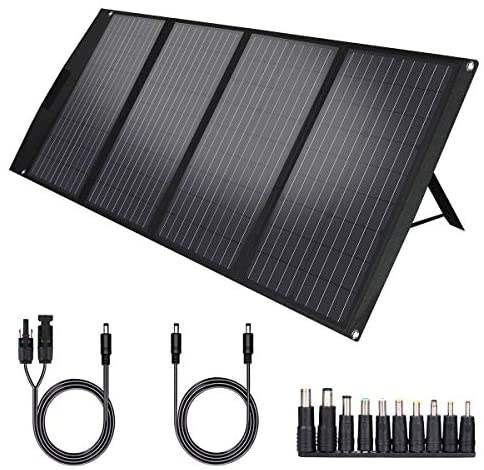

1* User Manual
1* 120W Solar Panel
1* 10-in-1 DC Connector
1* 59 inch DC5521-to-DC5521 Cable
1* 78 inch DC5521-to- MC4 Connector cable
5.1 lbs , 3.7 lbs , 8.4 lbs , 8.6 lbs
✅【HIGH CONVERSION EFFICIENCY】Constructed form high-efficiency monocrystalline solar cells, with efficiencies of up to 21%-23%, convert more solar power into usable energy, which enables higher power generation even if the panel size is not larger than ordinary solar panels.
✅【HIGH COMPATIBILITY】Includes 10 different size of DC connectors, compatible with most portable solar generators on the market(but not for Jackery 440), 8mm DC Adapter for Jackery Explorer 240/160/500 and Goal Zero Yeti 150/400 Power Station, 3.5 * 1.35mm DC Adapter for Suaoki S270/ENKEEO S155/Paxcess 100W portable generator, 5.5 * 2.1mm DC Adapter for Rockpals 250W/PRYMAX 300W portable generator. MC4 connector for other portable power stations that compatible with the MC4 connector.
✅【UPGRADE 4-PORT SMART CHARGING TECHNOLOGY】Equipped with 1*DC port(18V/6.6A max), 1*USB port(5V/2.1A), 1*USB QC3.0 port(5V⎓3A or 9V⎓2.5A or 12V⎓2A 24W max), 1* USB-C PD port(5V⎓3A or 9V⎓3A or 12V⎓3A or 20V⎓3A, 60W max), the built-in smart IC chip can intelligently identifys your device and automatically adjusts the optimal current, charging compatible devices is 4 times faster than ordinary solar chargers, suitable for smartphones, tablets, power banks, digital cameras and more.
✅【HIGH DURABILITY】Solar panel with industrial-strength PET polymer as the surface are sewn into an ultra-durable polyester canvas to provide weather-resistant outdoor durability, ideal for any outdoor activities such as camping, climbing, hiking, picnic.
✅【FOLDABLE AND PORTABLE】Ultra compact of size 20.5*14.4*1.6 inch(folded)/64.6*20.5 inch(opened), weighs only 8.6 lbs, and it comes with a rubber handle that makes it easy to carry anywhere you go, and 4 metal reinforced mounting holes for easy installation.
(as of Mar 11,2020 22:11:25 UTC – Details)
